Product Summary

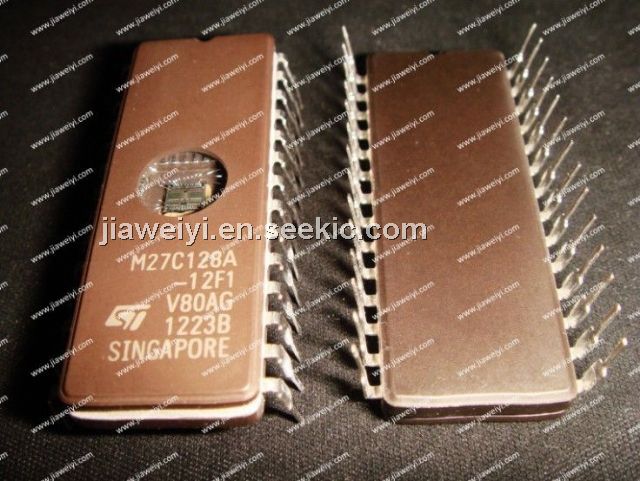

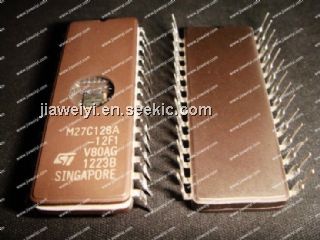

The M27C128A-12F1 is a high speed 131072-bit UV erasable and electrically programmable memory EPROM ideally suited for microprocessor systems requiring large programs. The M27C128A-12F1 is organized as 16384 by 8 bits.


M27C128A-12F1 absolute maximum ratings: (1)Ambient operating temperature: 0 to 70℃; (2)Temperature Under Bias: -50 to 125℃; (3)Storage temperature: -65 to 150℃; (4)Input or output voltages: -0.6 to 7V; (5)Supply voltage: -0.6 to 7V; (6)A9 voltage: -0.6 to 13.5V; (7)Program supply voltage: -0.6 to 14V.


M27C128A-12F1 features: (1)Very fast access time: 120ns; (2)Compatible with high speed microprocessors, zero wait state; (3)Low power "CMOS" consumption: active current: 30mA; (4)Standby current: 100μA; (5)Programming voltage: 12.75V; (6)Electronic signature for automated programming; (7)Programming times of around 2sec.


M27C128A-12F1 block diagram
