Product Summary
The MC78LC28NTR is a micropower ultra-low quiescent current voltage regulator. It is designed for handheld communication equipment and portable battery powered applications which require low quiescent current. The MC78LC28NTR features an ultra-low quiescent current of 1.1 uA. The applications of the MC78LC28NTR are Battery Powered Instruments, Hand-Held Instruments, Camcorders and Cameras.
Parametrics
MC78LC28NTR absolute maximum ratings: (1)Input Voltage:12V; (2)Output Voltage:-0.3V to VIN+0.3V; (3)Operating Junction Temperature:+125℃; (4)Operating Ambient Temperature:-40 to +85℃; (5)Storage Temperature:-55 to +150℃; (6)Lead Soldering Temperature @ 260℃:10sec.
Features
MC78LC28NTR features: (1)Low Quiescent Current of 1.1 uA Typical; (2)Excellent Line and Load Regulation; (3)Maximum Operating Voltage of 12 V; (4)Low Output Voltage Option; (5)High Accuracy Output Voltage of 2.5%; (6)Industrial Temperature Range of -40℃ to 85℃; (7)Two Surface Mount Packages (SOT-89, 3 Pin, or SOT-23, 5 Pin); (8)Pb-Free Packages are Available.

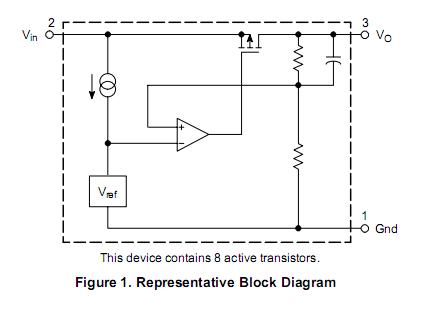

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MC78LC28NTR |
ON Semiconductor |
Low Dropout (LDO) Regulators 2.8V 80mA CMOS LDO |
Data Sheet |
Negotiable |
|
||||||||||||
|
MC78LC28NTRG |
ON Semiconductor |
Low Dropout (LDO) Regulators 2.8V 80mA CMOS LDO |
Data Sheet |
|
|
||||||||||||
