Product Summary

The MD51V65805E-50TA is a 8,388,608-word * 8-bit dynamic RAM fabricated in Oki’s silicon-gate CMOS technology. The MD51V65805E-50TA achieves high integration, high-speed operation, and low-power consumption because Oki manufactures the device in a quadruple-layer polysilicon/double-layer metal CMOS process. The MD51V65805E-50TA is available in a 32-pin plastic SOJ or 32-pin plastic TSOP.

Parametrics

MD51V65805E-50TA absolute maximum ratings: (1)Voltage on Any Pin Relative to VSS:-0.5V to 4.6V; (2)Short Circuit Output Current:50mA; (3)Power Dissipation:1W; (4)Operating Temperature:0 to 70℃; (5)Storage Temperature:-55 to 150℃.

Features

MD51V65805E-50TA features: (1)8,388,608-word * 8-bit configuration; (2)Single 3.3 V power supply, ±0.3 V tolerance; (3)Input: LVTTL compatible, low input capacitance; (4)Output: LVTTL compatible, 3-state; (5)Refresh: RAS-only refresh: 4096 cycles/64 ms, CAS before RAS refresh, hidden refresh: 4096 cycles/64 ms; (6)Fast page mode with EDO, read modify write capability; (7)CAS before RAS refresh, hidden refresh, RAS-only refresh capability.

Diagrams

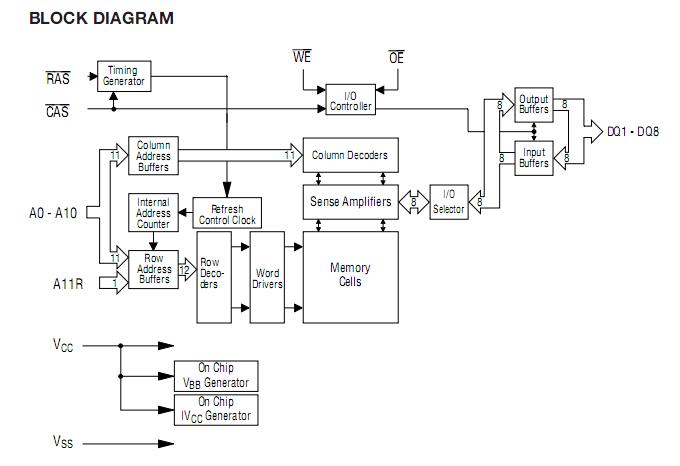

MD51V65805E-50TA block diagram
