Product Summary
The MSM6050 is a mobile station modem. It is optimized to support voice and key data capabilities while enabling CDMA2000 network benefits. The MSM6050 provides a seamless migration path from 2G to 3G services and applications, and the increased voice capacity of a CDMA2000 network. The MSM6050 solution will enable manufacturers to quickly develop handsets meeting specifications for worldwide cdmaOne and CDMA2000 1X systems.
Features
MSM6050 features: (1)Revolutionary radioOne architecture; (2)gpsOne position location capabilities; (3)CDMA2000 1X Release A support, offering data rates of up to 153 kbps on the forward and reverse links; (4)Tri-Mode (CDMA cellular, CDMA PCS, AMPS cellular); (5)Vocoders support (EVRC, 13K QCELP; (6)PureVoice Voice Recognition(VR); (7)Compact Media Extension(CMX multimedia software; (8)Qtunes audio decoder; (9)Moving Pictures Expert Group (MPEG) Layer-3 (MP3) support; (10)Standard MIDI ringer; (11)Universal Serial Bus (USB); (12)Removable Universal Identity Module (R-UIM) card interface; (13)Integrated wideband mono voice codec.

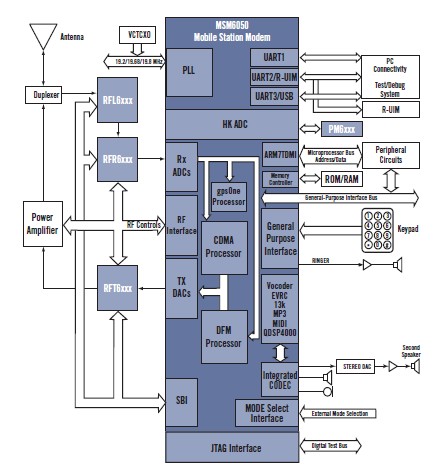

Diagrams
