Product Summary

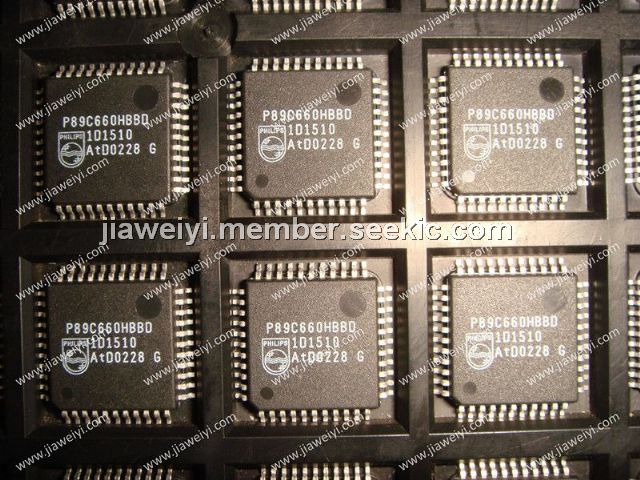

The P89C660HBBD is an 8-bit Flash microcontroller. The P89C660HBBD contains a non-volatile 16KB/32KB/64KB Flash program memory that is both parallel programmable and serial In-System and In-Application Programmable. In-System Programming (ISP) allows the user to download new code while the microcontroller sits in the application. In-Application Programming (IAP) means that the P89C660HBBD fetches new program code and reprograms itself while in the system. This allows for remote programming over a modem link. A default serial loader (boot loader) program in ROM allows serial In-System Programming of the Flash memory via the UART without the need for a loader in the Flash code. For In-Application Programming, the user program erases and reprograms the Flash memory by use of standard routines contained in ROM.

Parametrics

P89C660HBBD absolute maximum ratings: (1)Operating temperature under bias: 0 to +70 or –40 to +85℃; (2)Storage temperature range: –65 to +150℃; (3)Voltage on EA/VPP pin to VSS: 0 to +13.0 V; (4)Voltage on any other pin to VSS: –0.5 to +6.5 V; (5)Maximum IOL per I/O pin: 15 mA; (6)Power dissipation (based on package heat transfer limitations, not device power consumption): 1.5 W.

Features

P89C660HBBD features: (1)Can be programmed by the end-user application (IAP); (2)Parallel programming with 87C51 compatible hardware interface to programmer; (3)Six clocks per machine cycle operation (standard); (4)12 clocks per machine cycle operation (optional); (5)Speed up to 20 MHz with 6 clock cycles per machine cycle (40 MHz equivalent performance); up to 33 MHz with 12 clocks per machine cycle; (6)Fully static operation; (7)RAM externally expandable to 64 kbytes; (8)Four interrupt priority levels; (9)Eight interrupt sources; (10)Four 8-bit I/O ports; (11)Full-duplex enhanced UART: Framing error detection; Automatic address recognition.

Diagrams

P89C660HBBD diagram
