Product Summary

The S29AL016J70TFI010 is a 16 Mbit, 3.0 Volt-only Flash memory organized as 2,097,152 bytes or 1,048,576 words. The device is offered in 48-ball Fine-pitch BGA (0.8 mm pitch), 64-ball Fortified BGA (1.0 mm pitch) and 48-pin TSOP packages. The S29AL016J70TFI010 is designed to be programmed in-system with the standard system 3.0 volt VCC supply. A 12.0 V VPP or 5.0 VCC are not required for write or erase operations. The S29AL016J70TFI010 can also be programmed in standard EPROM programmers.

Parametrics

S29AL016J70TFI010 absolute maximum ratings: (1)Storage Temperature Plastic Packages:–65℃ to +150℃; (2)Ambient Temperature with Power Applied:–65℃ to +125℃; (3)Voltage with Respect to Ground: VCC:–0.5V to +4.0V, A9, OE#, and RESET#:–0.5V to +12.5V, All other pins:–0.5V to VCC+0.5V; (4)Output Short Circuit Current:200mA.

Features

S29AL016J70TFI010 features: (1)Single Power Supply Operation; (2)Manufactured on 110 nm Process Technology; (3)Secured Silicon Sector region; (4)Flexible Sector Architecture; (5)Sectors can be locked in-system or via programming equipment; (6)Unlock Bypass Program Command; (7)Top or Bottom Boot Block Configurations Available; (8)Compatibility with JEDEC standards; (9)High Performance; (10)Ultra Low Power Consumption (typical values at 5 MHz); (11)Cycling Endurance: 1,000,000 cycles per sector typical; (12)Data Retention: 20 years typical.

Diagrams

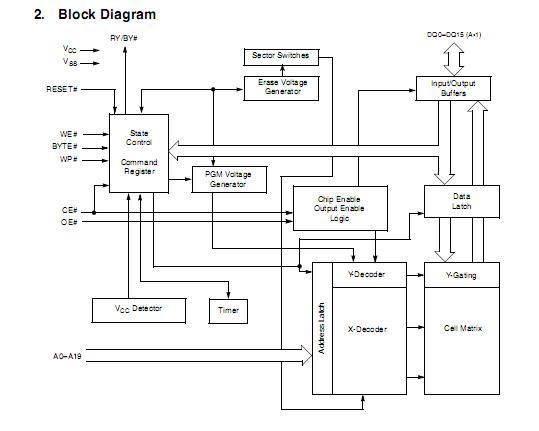

S29AL016J70TFI010 block diagram
