Product Summary

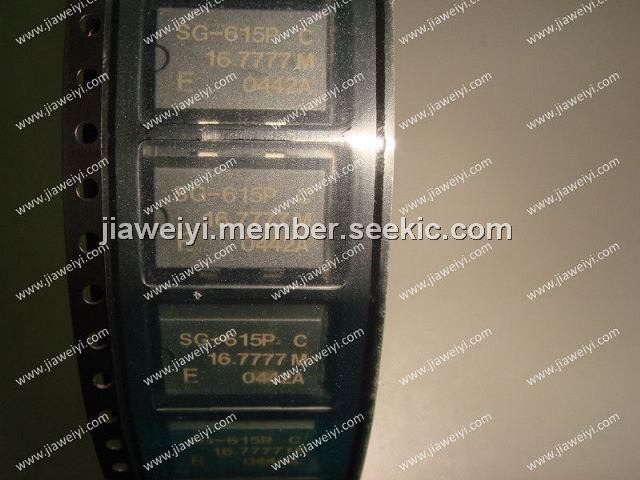

The SG-615PC is a SMD type high-frequency crystal oscillator.

Parametrics

SG-615PC specifications: (1)Output frequency range f0: 1.0250 MHz to 26.0000 MHz; (2)Power source voltage Max. supply voltage VDD-GND: -0.3 V to +7.0 V; Operating voltage VDD: 5.0 V±0.5 V; (3)Temperature range Storage temperature TSTG: -55 ℃ to +125 ℃; Operating temperature TOPR: -20 ℃ to +70 ℃; (4)Current consumption Iop: 23 mA Max; (5)Output disable current IOE: 12 mA Max.

Features

SG-615PC features: (1)High-density mounting-type SMD; (2)Designed for universal purpose with heat-resisting cylindrical type AT cut quartz; (3)Cylindrical type AT quartz crystal built-in, thus assuring high reliability; (4) Provided with output enable function; (5)Low current consumption.

Diagrams

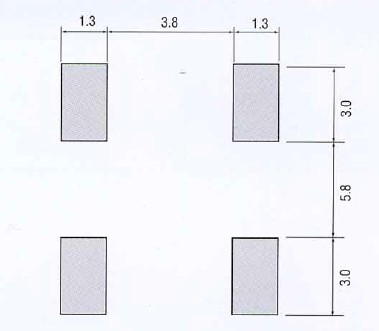

SG-615PC dimensions
