Product Summary

The SII1169CTU is a PanelLink Receiver. It enables the easy and lowcost addition of the DVI-HDCP interface to LCD monitors, projectors, digital televisions (DTVs), plasma displays and LCD TVs. With the DVI-compliant SII1169CTU, displays can realize consistently high image quality while receiving premium video content encrypted with High-bandwidth Digital Content Protection (HDCP). The applications of the SII1169CTU include: LCD Monitors, Projectors, Digital TVs, Plasma Displays, LCD TVs.

Features

SII1169CTU features: (1)Provides a consistent, high-quality digital visual experience; (2)Improves image focus, convergence and geometry; (3)Interoperates with a broad range of DVI transmitters, including all DVI-compliant transmitters; (4)Programmable equalizer supports long cable lengths beyond 10m with twistedpair; fiber-optics ready; (5)Dual-link support up to 270MHz; (6)Cost-effective, easy-to-implement architecture for DVI-compliant LCD monitors, projectors, DTVs, plasma displays and LCD TVs; (7)100-pin TQFP package.

Diagrams

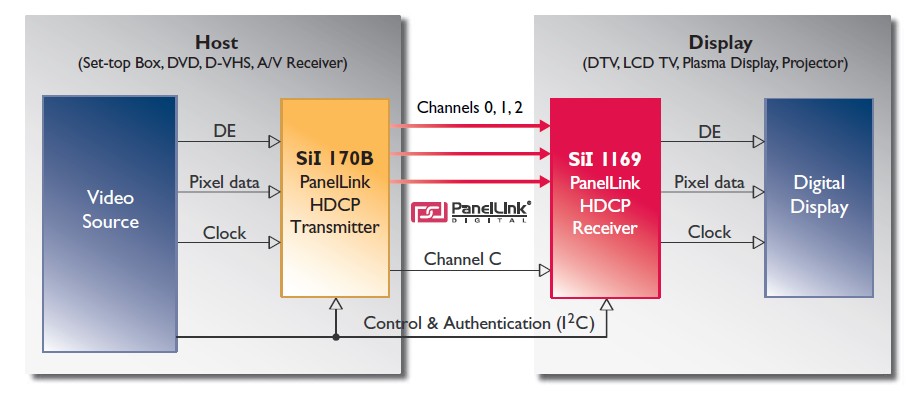

SII1169CTU diagram
