Product Summary
The SPC5200CBV400B is a SDRAM/DDR Memory Controller.
Parametrics
SPC5200CBV400B absolute maximum ratings: (1)Supply voltage — e300 core and peripheral logic VDD_CORE: –0.3 to 1.8 V; (2)Supply voltage — I/O buffers VDD_IO, VDD_MEM_IO: –0.3 to 3.6 V; (3)Supply voltage — System APLL SYS_PLL_AVDD: –0.3 to 2.1 V; (4)Supply voltage — e300 APLL CORE_PLL_AVDD: –0.3 to 2.1 V; (5)Input voltage (VDD_IO) Vin: –0.3 to VDD_IO + 0.3 V D1.5; (6)Input voltage (VDD_MEM_IO) Vin: –0.3 to VDD_MEM_IO; (7)+ 0.3; (8)Input voltage overshoot Vinos: 1.0 V; (9)Input voltage undershoot Vinus: 1.0 V; (10)Storage temperature range Tstg: –55 to 150 ℃.
Features
SPC5200CBV400B features: (1)Superscalar architecture; (2)760 MIPS at 400 MHz (–40 ℃ to +85 ℃); (3)16 KB Instruction cache, 16 KB Data cache; (4)Double precision FPU; (5)Instruction and Data MMU; (6)Standard and Critical interrupt capability; (7)Up to 133 MHz operation; (8)SDRAM and DDR SDRAM support; (9)256 MB addressing range per CS, two CS available; (10)32-bit data bus; (11)Built-in initialization and refresh.

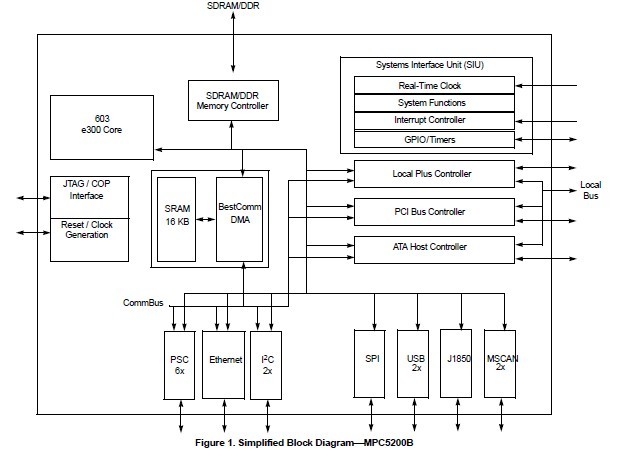

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 SPC5200CBV400B |
Freescale Semiconductor |
Microprocessors (MPU) HABANERO AUTO |
Data Sheet |
|
|
||||||||||
|
SPC5200CBV400BR2 |
Freescale Semiconductor |
Microprocessors (MPU) HABANERO - AUTO |
Data Sheet |
|
|
||||||||||
