Product Summary

The SPP04N60C3 is a Cool MOS Power Transistor.

Parametrics

SPP04N60C3 absolute maximum ratings: (1)Continuous drain current ID: 4.5 A; (2)Pulsed drain current, tp limited by Tjmax ID puls: 13.5 A; (3)Avalanche energy, single pulse ID=3.4, VDD=50V EAS: 130 mJ; (4)Avalanche energy, repetitive tAR limited by Tjmax ID=4.5A, VDD=50V EAR: 0.4 mJ; (5)Avalanche current, repetitive tAR limited by Tjmax IAR: 4.5 A; (6)Gate source voltage static VGS: ±20 V; (7)Gate source voltage AC (f >1Hz) VGS: ±30; (8)Power dissipation, TC = 25℃ Ptot: 31 W; (9)Operating and storage temperature Tj , Tstg: -55 to +150 ℃.

Features

SPP04N60C3 features: (1)New revolutionary high voltage technology; (2)Ultra low gate charge; (3)Periodic avalanche rated; (4)Extreme dv/dt rated; (5)High peak current capability; (6)Improved transconductance; (7)P-TO-220-3-31: Fully isolated package (2500 VAC; 1 minute).

Diagrams

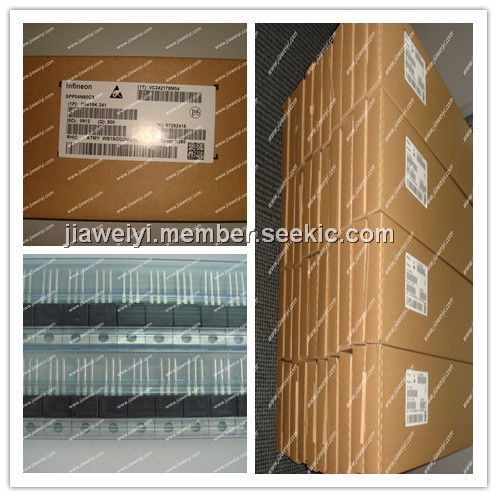

SPP04N60C3 diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
SPP04N60C3
SPP04N60C3
Infineon Technologies
MOSFET COOL MOS N-CH 650V 4.5A
Data Sheet
0-1: $0.96
1-10: $0.79
10-100: $0.67
100-250: $0.54
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
SPP02N60C3
SPP02N60C3
Infineon Technologies
MOSFET COOL MOS N-CH 600V 1.8A
Data Sheet
0-1: $0.41
1-10: $0.37
10-100: $0.32
100-250: $0.29
SPP02N60S5
SPP02N60S5
Infineon Technologies
MOSFET COOL MOS N-CH 600V 1.8A
Data Sheet
0-1: $0.52
1-10: $0.46
10-100: $0.34
100-500: $0.32
SPP02N80C3
SPP02N80C3
Infineon Technologies
MOSFET COOL MOS N-CH 800V 2A
Data Sheet
0-1: $0.64
1-10: $0.57
10-100: $0.55
100-500: $0.49
SPP03N60C3
SPP03N60C3
Infineon Technologies
MOSFET MOSFET N-Channel
Data Sheet
0-1: $0.91
1-10: $0.81
10-100: $0.64
100-250: $0.56
SPP03N60S5
SPP03N60S5
Infineon Technologies
MOSFET COOL MOS N-CH 600V 3.2A
Data Sheet
0-1: $0.86
1-10: $0.74
10-100: $0.57
100-500: $0.39
SPP04N50C3
SPP04N50C3
Infineon Technologies
MOSFET COOL MOS N-CH 500V 4.5A
Data Sheet
0-1: $0.82
1-10: $0.65
10-100: $0.57
100-250: $0.44
