Product Summary

The STI5202QUD is a Low-cost set-top box decoder for H.264 and Microsoft VC1. It provides very high performance for low-cost systems. The STI5202QUD includes both VC1 and H.264 video decoders for new, low bit rate applications.

Features

STI5202QUD features: (1)Single-chip, video decoder including: Linux Windows CE and OS21 compatible ST40 CPU core: 266 MHz, Transport filtering and descrambling, Video decoder: VC-1 (including WMV 9), H.264 (MPEG-4 part 10) and MPEG-2, SVP compliant, Windows Media?DRM support, ST40 32-bit superscaler RISC CPU; (2)Embedded interfaces: USB 2.0 host controller/PHY interface, DVI/HDMI. output, Digital audio and video auxiliary inputs, Low-cost modem, 100BT ethernet controller with integrated MAC and MII/RMII interface for external PHY.

Diagrams

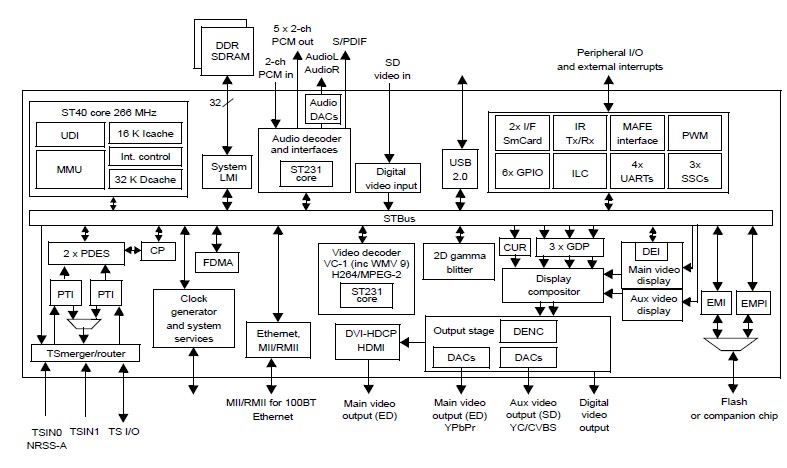

STI5202QUD diagram
