Product Summary
The TLV2372IDGKR single supply operational amplifier provides rail-to-rail input and output capability. The TLV2372IDGKR takes the minimum operating supply voltage down to 2.7 V over the extended industrial temperature range while adding the rail-to-rail output swing feature. The TLV2372IDGKR also provides 3-MHz bandwidth from only 550 μA. The maximum recommended supply voltage is 16 V, which allows the device to be operated from (±8 V supplies down to ±1.35 V) a variety of rechargeable cell. The CMOS inputs enable use in high-impedance sensor interfaces, with the lower voltage operation making an ideal alternative for the TLV2372IDGKR in battery-powered application. The rail-to-rail input stage further increases its versatility. The TLV2372IDGKR is the seventh member of a rapidly growing number of RRIO products available from TI, and it is the first to allow operation up to 16-V rails with good ac performance.
Parametrics
TLV2372IDGKR absolute maximum ratings: (1)Supply voltage, VDD: 16.5 V; (2)Differential input voltage, VID: ±VDD; (3)Input voltage range, VI: 0.2 V to VDD + 0.2 V; (4)Input current range, II: ±10 mA; (5)Output current range, IO: ±100 mA; (6)Continuous total power dissipation: See Dissipation Rating Table; (7)Operating free-air temperature range, TA: I-suffix: 40℃ to 125℃; (8)Maximum junction temperature, TJ: 150℃; (9)Storage temperature range, Tstg: 65℃ to 150℃; (10)Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds: 260℃.
Features
TLV2372IDGKR features: (1)Rail-To-Rail Input/Output; (2)Wide Bandwidth3 MHz; (3)High Slew Rate: 2.4 V/μs; (4)Supply Voltage Range: 2.7 V to 16 V; (5)Supply Current: 550 μA/Channel; (6)Low Power Shutdown Mode; (7)IDD(SHDN): 25 μA/Channel; (8)Input Noise Voltage: 39 nV/√Hz; (9)Input Bias Current: 1 pA; (10)Specified Temperature Range: -40℃ to 125℃: Industrial Grade.

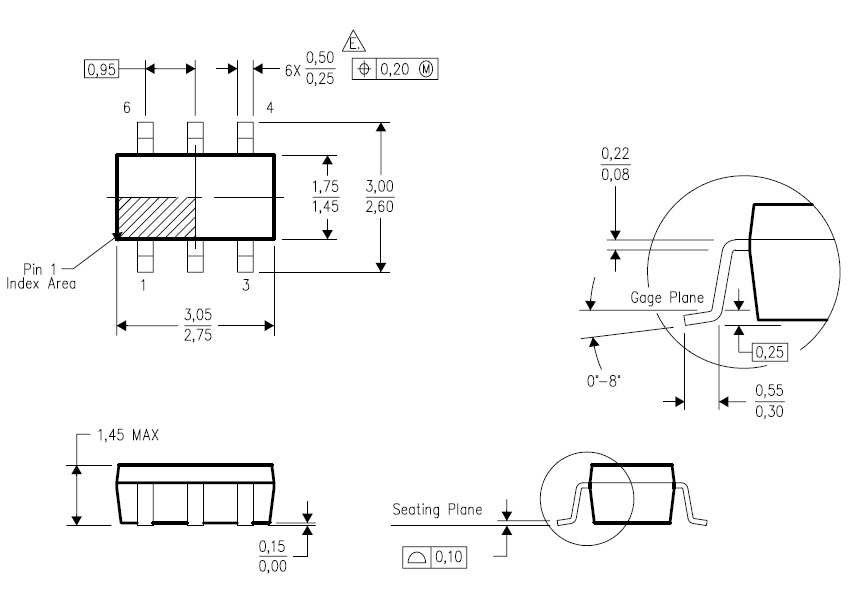

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TLV2372IDGKR |
Texas Instruments |
Operational Amplifiers - Op Amps 550-uA/Channel 3-MHz RRIO Op Amp |
Data Sheet |
|
|
||||||||||||
|
TLV2372IDGKRG4 |
Texas Instruments |
Operational Amplifiers - Op Amps 550-uA/Channel 3-MHz RRIO Op Amp |
Data Sheet |
|
|
||||||||||||
