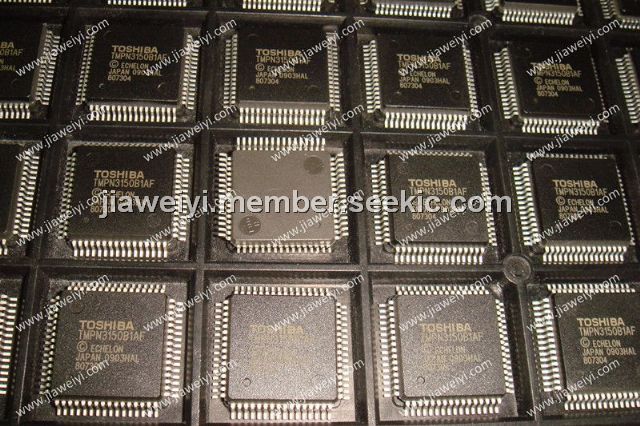

Product Summary

The TMPN3150B1AF is a Neuron Chip which configures LONWORKS nodes in combination with external memory. Neuron Chips have all the built-in communications and control functions required to implement LONWORKS nodes. These nodes may then be easily integrated into highly-reliable distributed intelligent control networks. The typical functions for this chip TMPN3150B1AF are explained below.

Parametrics

TMPN3150B1AF absolute maximum ratings: (1)Power Supply Voltage, VDD: -0.3~7.0 V; (2)Input Voltage, VIN: -0.3~VDD+0.3 V; (3)Power Dissipation, PD: 800 mW; (4)Storage Temperature, Tstg: -65~150℃.

Features

TMPN3150B1AF features: (1)Eleven programmable I / O pins; (2)Two programmable 16-bit timers and counters built in; (3)34 different types of I / O functions to handle a wide range of input and output; (4)ROM firmware image containing pre-programmed I / O drivers, greatly simplifying application programs. ( Stored in external ROM ) ; (5)Network functions; (6)Two CPUs for communication protocol processing built in. The communications and application CPUs execute in parallel; (7)Equipped with a built-in LonTalk protocol which supports all seven levels of the OSI reference model with ISO; (8)Highly reliable communication protocol is supplied as firmware; (9)Built-in twisted-pair wire transceiver; (10)Equipped with communications modes and communication speeds which support various types of external transceivers. Supports twisted-pair wire, power line, radio ( RF ), infrared, coaxial cables and fiber optics; (11)Communication port transceiver modes and logical addresses stored within the EEPROM. Can be amended via the network.

Diagrams

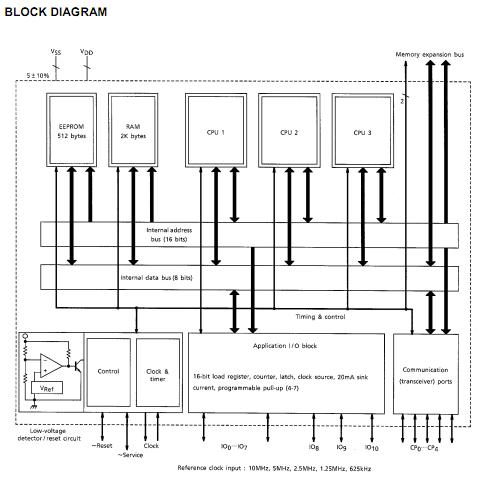

TMPN3150B1AF block diagram
