TMS320LC206PZA80

digital signal processor, 100-LQFP, 32-bit, 3.3 V, TMS320LC206PZA80

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.00~2.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.00~2.00

PartNumber:: TMS320LC206PZA80

Brand:: Texas Instruments - TI | Pack: QFP | D/C: 09+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Lisa's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-05-30

From Other Seller

Part Number:TMS320LC206PZA80
US $1.00 - 2.00
ECA1HHG100

US $10.00 - 10.00 / Piece
(0) Remove
FM31256-G

US $2.40 - 4.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

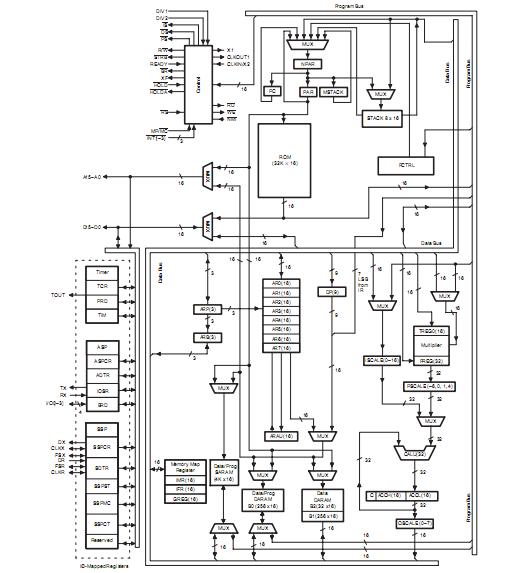

The TMS320LC206PZA80 is a digital signal processor. It is fabricated with static CMOS integrated-circuit technology. The architectural design is based upon that of the TMS320LC206PZA80 and is optimized for low power operation. The combination of advanced Harvard architecture, on-chip peripherals, on-chip memory, and a highly specialized instruction set is the basis of the operational flexibility and speed of the TMS320LC206PZA80.

Parametrics

TMS320LC206PZA80 absolute maximum ratings: (1)Supply voltage range, VDD:-0.3 V to 4.6 V; (2)Supply voltage range, VDD5:-0.3 V to 7 V; (3)Input voltage range:-0.3 V to 4.6 V; (4)Output voltage range:-0.3 V to 4.6 V; (5)Operating free-air temperature range:-40℃ to 85℃; (6)Storage temperature range:-55℃ to 150℃.

Features

TMS320LC206PZA80 features: (1)High-Performance Static CMOS Technology; (2)TMS320C206, TMS320LC206 are Members of the ’C20x/’C2000 Platform Which Also Includes the TMS320C203/LC203 and TMS320F206 Devices; (3)Instruction-Cycle Time 25 ns at 3.3 V; (4)Source Code Compatible With TMS320C25 and other ’20x Devices; (5)Four External Interrupts; (6)TMS320LC206, 3.3-V core and I/O; (7)32-Bit Arithmetic Logic Unit (ALU) Accumulator; (8)16 × 16-Bit Multiplier With a 32-Bit Product; (9)Block Moves from Data and Program Space; (10)On-Chip 20-Bit Timer; (11)On-Chip Software-Programmable Wait-State (0 to 7) Generator; (12)On-Chip Oscillator; (13)On-Chip Phase-Locked Loop (PLL); (14)Six General-Purpose I/O Pins; (15)Full-Duplex Asynchronous Serial Port(UART); (16)Enhanced Synchronous Serial Port(ESSP) With Four-Level-Deep FIFOs; (17)Support of Hardware Wait States; (18)Power Down IDLE Mode; (19)IEEE 1149.1-Compatible Scan-Based Emulation; (20)TMS320C206, TMS320LC206 100-Pin PZ Package, Small Thin Quad Flat Package(TQFP); (21)Industrial Temperature Version Planned,(– 40℃ to 85℃).
