TPA6120A2DWPRG4

high fidelity audio amplifier, 0.08W, 20SOIC, 600Ω, 12V, TPA6120A2DWPRG4

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.00~2.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.00~2.00

PartNumber:: TPA6120A2DWPRG4

Brand:: Texas Instruments - TI | Pack: SOP | D/C: 06+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Lisa's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-06-01

From Other Seller

Part Number:TPA6120A2DWPRG4
US $1.00 - 2.00
TMS320C6414TBGLZA7

US $58.00 - 65.00 / Piece
(0) Remove
LM64P101

US $240.00 - 300.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

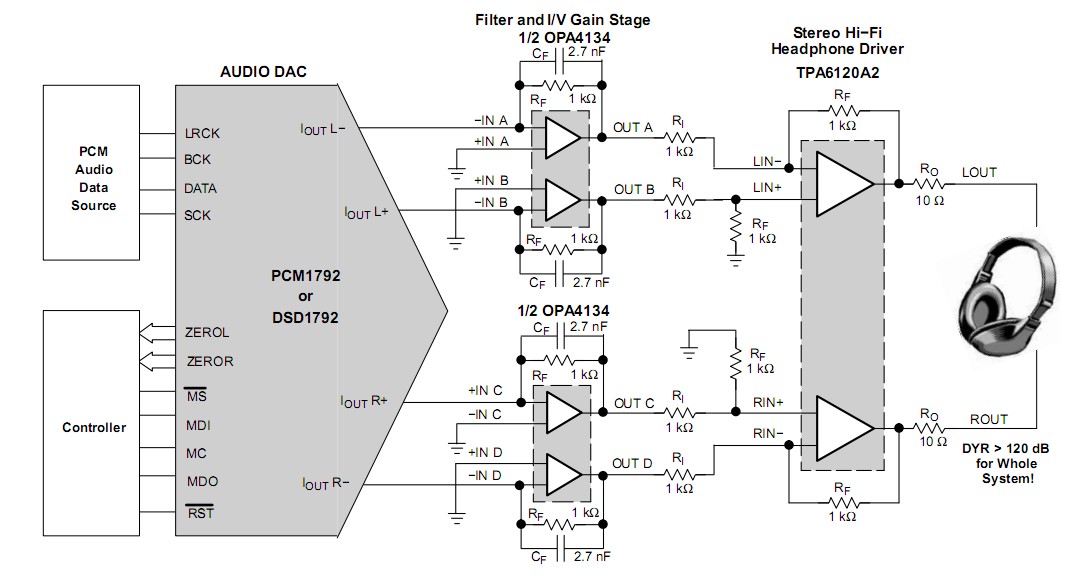

The TPA6120A2DWPRG4 is a high fidelity audio amplifier builts on a current-feedback architecture. This high bandwidth, extremely low noise device is ideal for high performance equipment. The better than 120 dB of dynamic range exceeds the capabilities of the human ear, ensuring that nothing audible is lost due to the amplifier. The solid design and performance of the TPA6120A2DWPRG4 ensures that music, not the amplifier, is heard. The applications of the TPA6120A2DWPRG4 include: Professional Audio Equipment, Mixing Boards, Headphone Distribution Amplifiers, Headphone Drivers, Microphone Preamplifiers.

Parametrics

TPA6120A2DWPRG4 absolute maximum ratings: (1)Supply voltage: V CC+ to V CC-: 33 V; (2)Input voltage, V I(2): ± V CC; (3)Differential input voltage, V ID: 6 V; (4)Minimum load impedance: 8 Ω; (5)Continuous total power dissipation: See Dissipation Rating Table; (6)Operating free – air temperature range, T A: - 40 to 85℃; (7)Operating junction temperature range, T J(3): - 40 to 150℃; (8)Storage temperature range, T stg: - 40 to 125℃; (9)Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds: 235℃.

Features

TPA6120A2DWPRG4 features: (1)80 mW into 600Ω From a ± 12-V Supply at 0.00014% THD + N; (2)Current-Feedback Architecture; (3)Greater than 120 dB of Dynamic Range; (4)SNR of 120 dB; (5)Output Voltage Noise of 5 μ Vrms at Gain = 2 V/V; (6)Power Supply Range: ± 5 V to ± 15 V; (7)1300 V/ μ s Slew Rate; (8)Differential Inputs; (9)Independent Power Supplies for Low Crosstalk; (10)Short Circuit and Thermal Protection.
