Product Summary
The XC2VP40-5FGG676C is a Platform FPGA. It contains platform FPGAs for designs that are based on IP cores and customized modules. The XC2VP40-5FGG676C incorporates multi-gigabit transceivers and PowerPC CPU blocks in Virtex-II Pro Series FPGA architecture. The XC2VP40-5FGG676C empowers complete solutions for telecommunication, wireless, networking, video, and DSP applications.
Parametrics
XC2VP40-5FGG676C absolute maximum ratings: (1)VCCINT Internal supply voltage relative to GND: –0.5 to 1.6 V; (2)VCCAUX Auxiliary supply voltage relative to GND: –0.5 to 3.0 V; (3)VCCO Output drivers supply voltage relative to GND: –0.5 to 3.75 V; (4)VBATT Key memory battery backup supply: –0.5 to 4.05 V; (5)VREF Input reference voltage: –0.3 to 3.75 V; (6)VIN; (7)3.3V I/O input voltage relative to GND (user and dedicated I/Os): –0.3 to 4.05 V; (8)2.5V or below I/O input voltage relative to GND (user and dedicated I/Os): –0.5 to VCCO + 0.5 V; (9)VTS; (10)Voltage applied to 3-state 3.3V output (user and dedicated I/Os): –0.3 to 4.05 V; (11)Voltage applied to 3-state 2.5V or below output (user and dedicated I/Os) –0.5 to VCCO + 0.5 V; (12)TSTG Storage temperature (ambient): –65 to +150 ℃; (13)TJ Maximum junction temperature +125 ℃.
Features
XC2VP40-5FGG676C features: (1)High-Performance Platform FPGA Solution, Including Up to twenty RocketIO or RocketIO X embedded Multi-Gigabit Transceivers (MGTs), Up to two IBM PowerPC?RISC processor blocks; (2)Based on Virtex-II?Platform FPGA Technology: Flexible logic resources, SRAM-based in-system configuration, Active Interconnect technology, SelectRAM + memory hierarchy, Dedicated 18-bit × 18-bit multiplier blocks, High-performance clock management circuitry, SelectI/O -Ultra technology, XCITE Digitally Controlled Impedance (DCI) I/O.

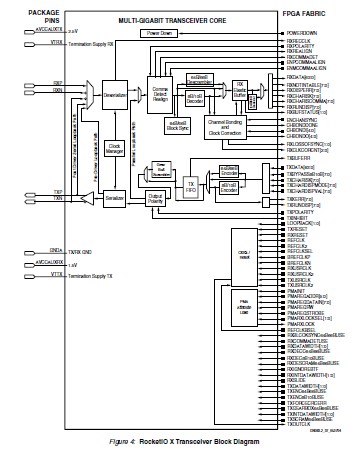

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 XC2VP40-5FGG676C |
|
IC VIRTEXIIPRO FPGA 40K 676BGA |
Data Sheet |
|
|
||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||
 |
XC2V1000 |
Other |
|
Data Sheet |
Negotiable |
|
||||||
|
XC2V1000-4BG575I |
|
IC FPGA VIRTEX-II 575PBGA |
Data Sheet |
|
|
||||||
|
XC2V1000-4BGG575C |
|
IC VIRTEX-II FPGA 1M 575-MBGA |
Data Sheet |
|
|
||||||
|
XC2V1000-4BGG575I |
|
IC FPGA VIRTEX-II 2M 575-MBGA |
Data Sheet |
|
|
||||||
|
XC2V1000-4FF896I |
|
IC FPGA VIRTEX-II 896FCBGA |
Data Sheet |
|
|
||||||
|
XC2V1000-4FFG896C |
|
IC VIRTEX-II FPGA 1M 896-FBGA |
Data Sheet |
|
|
||||||
