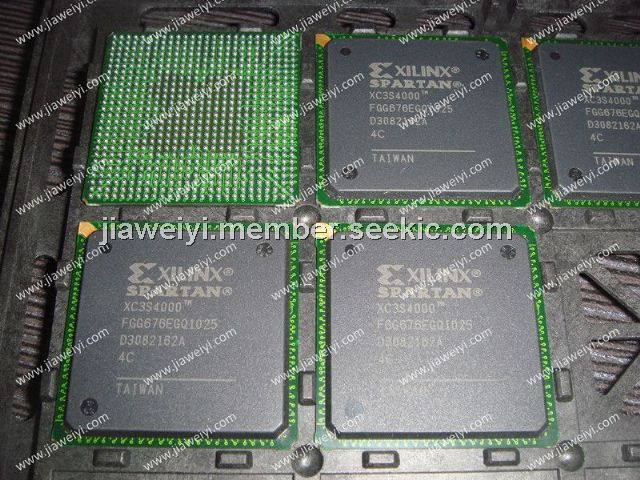

XC3S4000-4FGG676C

Field-Programmable Gate Array, 630MHz, 1.2V, 676-Pin FBGA

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.00~2.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.00~2.00

PartNumber:: XC3S4000-4FGG676C

Brand:: Xilinx, Inc - Xilinx | Pack: BGA | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Lisa's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-06-04

From Other Seller

Part Number:XC3S4000-4FGG676C
US $1.00 - 2.00
A50L-0001-0175

US $100.00 - 100.00 / Piece
(0) Remove
HEF4051BT

US $0.15 - 1.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

The XC3S4000-4FGG676C is a Field-Programmable Gate Array. It is specifically designed to meet the needs of high volume, cost-sensitive consumer electronic applications. The eight-member family offers densities ranging from 50,000 to five million system gates. The XC3S4000-4FGG676C builds on the success of the earlier Spartan-IIE family by increasing the amount of logic resources, the capacity of internal RAM, the total number of I/Os, and the overall level of performance as well as by improving clock management functions. Numerous enhancements derive from the Virtex-II platform technology. The XC3S4000-4FGG676C enhancements, combined with advanced process technology, deliver more functionality and bandwidth per dollar than was previously possible, setting new standards in the programmable logic industry.

Parametrics

XC3S4000-4FGG676C absolute maximum ratings: (1)VCCINT Internal supply voltage relative to GND: –0.5 to 1.32 V; (2)VCCAUX Auxiliary supply voltage relative to GND: –0.5 to 3.00 V; (3)VCCO Output driver supply voltage relative to GND: –0.5 to 3.75 V; (4)VREF Input reference voltage relative to GND: –0.5 to VCCO+0.5 V; (5)IIK Input clamp current per I/O pin: ±100 mA; (6)TJ Junction temperature: 125 ℃; (7)TSOL Soldering temperature: 220 ℃; (8)TSTG Storage temperature: –65 to 150 ℃.

Features

XC3S4000-4FGG676C features: (1)Low-cost, high-performance logic solution for high-volume, consumer-oriented applications; (2)SelectIO interface signaling; (3)Logic resources; (4)SelectRAM hierarchical memory; (5)Digital Clock Manager (up to four DCMs); (6)Eight global clock lines and abundant routing; (7)Pb-free packaging options.
