XC5VLX50T-1FFG665C

Product Summary

The XC5VLX50T-1FFG665C is a Field Programmable Gate Array. It provides the newest most powerful features in the FPGA market and contains five distinct platforms (sub-families), the most choice offered by any FPGA family. In addition to the most advanced, high-performance logic fabric, the XC5VLX50T-1FFG665C contains many hard-IP system level blocks, including powerful 36-Kbit block RAM/FIFOs, second generation 25 x 18 DSP slices, SelectIO technology with built-in digitallycontrolled impedance, ChipSync source-synchronous interface blocks, system monitor functionality, enhanced clock management tiles with integrated DCM (Digital Clock Managers) and phase-locked-loop (PLL) clock generators, and advanced configuration options.

Parametrics

XC5VLX50T-1FFG665C absolute maximum ratings: (1)VCCINT Internal supply voltage relative to GND: –0.5 to 1.1 V; (2)VCCAUX Auxiliary supply voltage relative to GND: –0.5 to 3.0 V; (3)VCCO Output drivers supply voltage relative to GND: –0.5 to 3.75 V; (4)VBATT Key memory battery backup supply: –0.5 to 4.05 V; (5)VREF Input reference voltage: –0.5 to 3.75 V; (6)IIN Current applied to an I/O pin, powered or unpowered: ±100 mA, Total current applied to all I/O pins, powered or unpowered: ±100 mA; (7)VTS Voltage applied to 3-state 3.3V output (user and dedicated I/Os): –0.75 to 4.05 V, Voltage applied to 3-state 2.5V or below output (user and dedicated I/Os): –0.75 to VCCO + 0.5 V; (8)TSTG Storage temperature (ambient): –65 to 150 ℃; (9)TSOL Maximum soldering temperature: +220 ℃; (10)TJ Maximum junction temperature: +125 ℃.

Features

XC5VLX50T-1FFG665C features: (1)Five platforms LX, LXT, SXT, TXT, and FXT; (2)Cross-platform compatibility; (3)Most advanced, high-performance, optimal-utilization, FPGA fabric; (4)Powerful clock management tile (CMT) clocking; (5)36-Kbit block RAM/FIFOs; (6)High-performance parallel SelectIO technology; (7)65-nm copper CMOS process technology; (8)1.0V core voltage; (9)High signal-integrity flip-chip packaging available in standard or Pb-free package options.

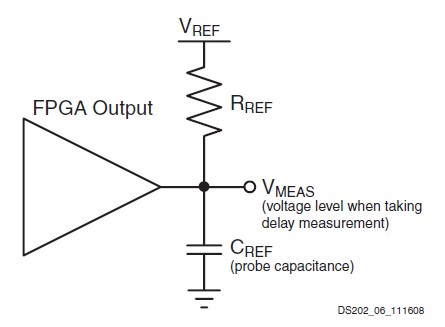

Diagrams
