Product Summary
The Z8018010FSC is an enhanced microprocessor. It significantly improves on the previous Z80180 models while still providing full backward compatibility with existing Zilog Z80 devices. The Z8018010FSC now offers faster execution speeds, power saving modes, and EMI noise reduction. This enhanced Z180 design also incorporates additional feature enhancements to the ASCIs, DMAs, and Icc STANDBY Mode power consumption. In addition, the ASCI receiver of the Z8018010FSC has added a 4-byte First In First Out (FIFO) which can be used to buffer incoming data to reduce the incidence of overrun errors.
Parametrics
Z8018010FSC absolute maximum ratings: (1)Supply Voltage Vcc: -0.3 ~ +7.0 V; (2)Input Voltage Vin: -0.3 ~ Vcc +0.3 V; (3)Operating Temperature Topr: 0 ~ 70 ℃; (4)Extended Temperature Text: -40 ~ 85 ℃; (5)Storage Temperature Tstg: -55 ~ +150 ℃.
Features
Z8018010FSC features: (1)Code Compatible with Zilog Z80 CPU; (2)Extended Instructions; (3)Two Chain-Linked DMA Channels; (4)Low Power-Down Modes; (5)On-Chip Interrupt Controllers; (6)Three On-Chip Wait-State Generators; (7)On-Chip Oscillator/Generator; (8)Expanded MMU Addressing (up to 1 MB); (9)Clocked Serial I/O Port.

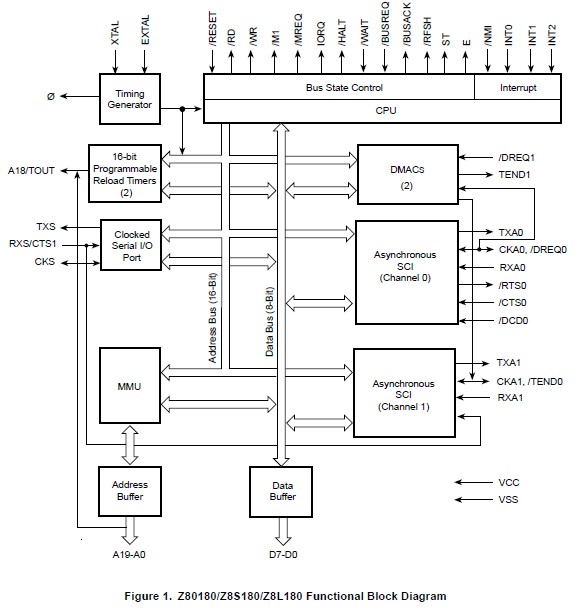

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 Z8018010FSC |
ZiLOG |
Microprocessors (MPU) 10MHz CMOS Enh MPU |
Data Sheet |
Negotiable |
|
||||
|
Z8018010FSC00TR |
|
IC Z180 MPU 80QFP |
Data Sheet |
Negotiable |
|
||||
