Product Summary

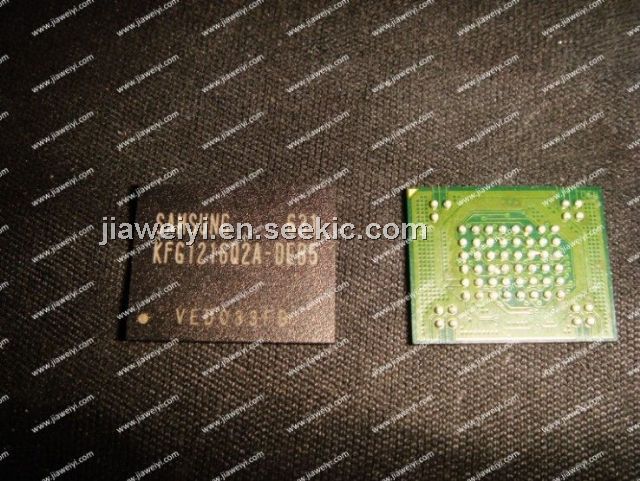

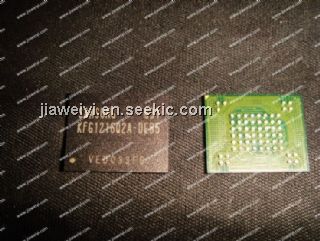

The KFG1216Q2A-DEB5 is a flash memory. The KFG1216Q2A-DEB5 is a monolithic integrated circuit with a NAND Flash array using a NOR Flash interface. The KFG1216Q2A-DEB5 includes control logic, a NAND Flash array, and 5KB of internal BufferRAM. The BufferRAM reserves 1KB for boot code buffering (BootRAM) and 4KB for data buffering (DataRAM), split between 2 independent buffers. It has a x16 Host Interface and a random access time speed of 76ns.


KFG1216Q2A-DEB5 absolute maximum ratings: (1)Voltage on any pin relative to VSS Vcc (for 1.8V): -0.5 to + 2.45V; (2)Vcc (for 2.65V/3.3V): -0.5 to + 4.6V; (3)All Pins VIN (for 1.8V): -0.5 to + 2.45V; (4)VIN (for 2.65V/3.3V): -0.5 to + 4.6V; (5)Temperature Under Bias Extended Tbias: -30 to +125℃; (6)Industrial: -40 to +125℃; (7)Storage Temperature Tstg: -65 to +150℃; (8)Short Circuit Output Current IOS: 5mA; (9)Recommended Operating Temperature TA (Extended Temp.): -30 to +85℃; (10)TA (Industrial Temp.): -40 to +85℃.


KFG1216Q2A-DEB5 features: (1)A BootRAM and bootloader; (2)Two independent bi-directional 2KB DataRAM buffers; (3)A High-Speed x16 Host Interface; (4)On-chip Error Correction; (5)On-chip NOR interface controller.


KFG1216Q2A-DEB5 block diagram
