The MT8816AP is an Analog Switch Array fabricated in MITEL ISOCMOS technology providing low power dissipation and high reliability. The MT8816AP contains a 8 x 16 array of crosspoint switches along with a 7 to 128 line decoder and latch circuits. Any one of the 128 switches can be addressed by selecting the appropriate seven address bits. The selected switch can be turned on or off by applying a logical one or zero to the DATA input. The applications of the MT8816AP include: Key systems, PBX systems and so on.
Parametrics
MT8816AP maximum ratings: ((1)Supply Voltage: VDD, -0.3 to 16.0; VSS, -0.3 to VDD+0.3V; (2)Analog Input Voltage: -0.3 to VDD+0.3 V; (3)Digital Input Voltage: VSS-0.3 to VDD+0.3 V; (4)Current on any I/O Pin: ±15 mA; (5)Storage Temperature: -65 +150 ℃.
Features
MT8816AP features: (1)Internal control latches and address decoder; (2)Short set-up and hold times; (3)Wide operating voltage: 4.5V to 13.2V; (4)12Vpp analog signal capability; (5)Full CMOS switch for low distortion; (6)Minimum feedthrough and crosstalk; (7)Separate analog and digital reference supplies; (8)Low power consumption ISO-CMOS technology.

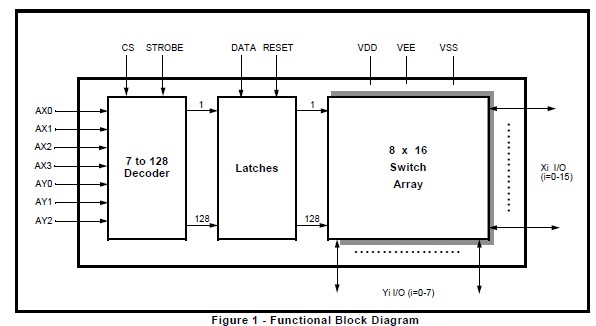

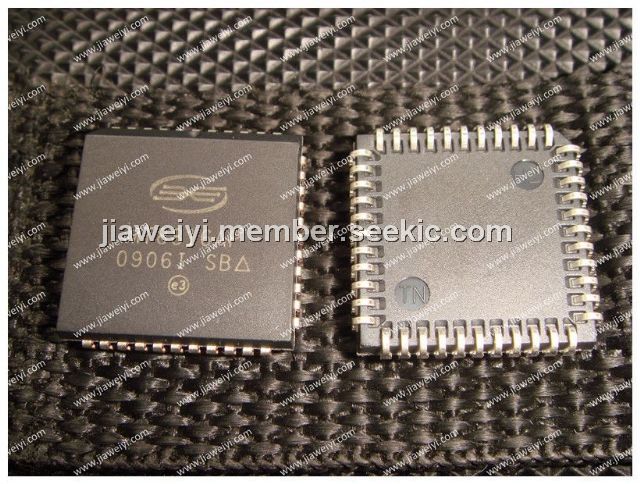

Diagrams
 |
