Product Summary
The PGB002ST23WR is a Surface Mount ESD Suppressor. It supplements the on-chip protection of integrated circuitry and are best suited for lowvoltage, high-speed applications where low capacitance is important. Data ports of the PGB002ST23WR utilizing such high-speed protocols as USB 2.0, IEEE1394 and InfiniBandSM can benefit from this new technology. The applications of the PGB002ST23WR include: Servers, Laptop/Desktop Computers, Network Hardware, Computer Peripherals, Digital Cameras, External Storage.
Parametrics
PGB002ST23WR electrical characteristics: (1)Trigger Voltage: 1,000V typical; (2)Clamping Voltage: 150V typical; (3)Rated Voltage: 24VDC max; (4)Capacitance: 0.055pF; (5)Response Time: <1ns; (6)Leakage Current: <1nA; (7)ESD Pulse Withstand: 1,000 pulses minimum.
Features
PGB002ST23WR features: (1)Ultra-low capacitance; (2)Low leakage current; (3)Fast response time; (4)2-lines of protection; (5)Bi-directional; (6)Withstands multiple ESD strikes; (7)Standard JEDEC SOT23 outline; (8)Compatible with pick-and-place processes; (9)Available in 3,000 piece reels.

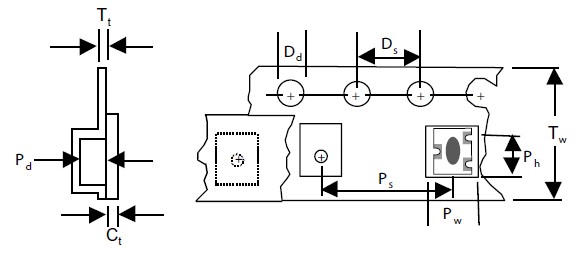

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 PGB002ST23WR |
Littelfuse |
ESD Suppressors PGB002ST23WR |
Data Sheet |
Negotiable |
|
||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||
 |
PGB0010402KR |
|
SUPPESSOR ESD 6VDC 0402 SMD T/R |
Data Sheet |
Negotiable |
|
||||
|
PGB0010402MR |
Littelfuse Inc |
SUPPESSOR ESD 6VDC 0402 SMD |
Data Sheet |
Negotiable |
|
||||
|
PGB0010603MR |
Littelfuse |
ESD Suppressors 0603 24VDC 45A |
Data Sheet |
Negotiable |
|
||||
|
PGB0010603NR |
Littelfuse |
ESD Suppressors PGB0010603NR |
Data Sheet |
Negotiable |
|
||||
|
PGB002ST23WR |
Littelfuse |
ESD Suppressors PGB002ST23WR |
Data Sheet |
Negotiable |
|
||||
|
PGB0040805 |
Other |
|
Data Sheet |
Negotiable |
|
||||
