SSM2166S

Microphone Preamplifier, SOP-14, +5 V, 20 kHz, SSM2166S

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.00~2.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.00~2.00

PartNumber:: SSM2166S

Brand:: Analog Devices - ADI | Pack: SOP | D/C: 06+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Lisa's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-05-30

From Other Seller

Part Number:SSM2166S
US $1.00 - 2.00
HEF4051BT

US $0.15 - 1.20 / Piece
(0) Remove
CM300DY-12NF

US $63.00 - 80.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

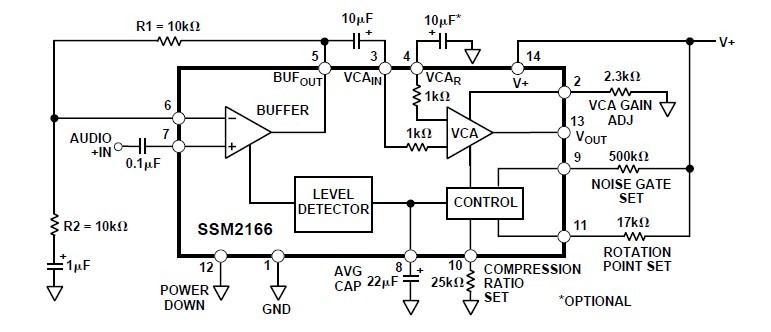

The SSM2166S is a Microphone Preamplifier. The SSM2166S integrates a complete and flexible solution for conditioning microphone inputs in computer audio systems. SSM2166S is also excellent for improving vocal clarity in communications and public address systems. A low noise voltage controlled amplifier (VCA) provides a gain that is dynamically adjusted by a control loop to maintain a set compression characteristic. The SSM2166S is an ideal companion product for audio codecs used in computer systems, such as the AD1845 and AD1847. The SSM2166S is available in 14-lead SOIC and P-DIP packages, and guaranteed for operation over the extended industrial temperature range of –40℃ to +85℃.

Parametrics

SSM2166S absolute maximum ratings: (1)Supply Voltage: ±10 V; (2)Audio Input Voltage: Supply Voltage; (3)Storage Temperature Range: –65℃ to +150℃; (4)Operating Temperature Range: –40℃ to +85℃; (5)Junction Temperature Range: –65℃ to +150℃; (6)Lead Temperature Range (Soldering 60 sec): +300℃.

Features

SSM2166S features: (1)Complete Microphone Conditioner in a 14-Lead Package; (2)Single +5 V Operation; (3)Adjustable Noise Gate Threshold; (4)Compression Ratio Set by External Resistor; (5)Automatic Limiting Feature-Prevents ADC Overload; (6)Adjustable Release Time; (7)Low Noise and Distortion; (8)Power-Down Feature; (9)20 kHz Bandwidth (±1 dB); (10)Low Cost.
