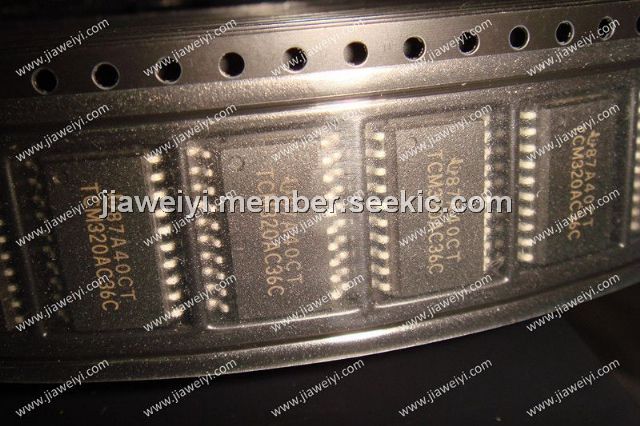

Product Summary

The TCM320AC36C is a voice-band audio processor. The TCM320AC36C is designed to perform the transmit encoding (A/D conversion) and receive decoding (D/A conversion) together with transmit and receive filtering for voice-band communications systems. Cellular telephone systems are targeted in particular; however, these integrated circuits can function in other systems including digital audio, telecommunications, and data acquisition. The TCM320AC36C is pin-selectable for either of two modes, companded and linear, providing data in two formats. In the companded mode, data is transmitted and received in 8-bit words.

Parametrics

TCM320AC36C absolute maxing ratings: (1)Supply voltage range, VCC: –0.3 V to 7 V; (2)Output voltage range at DOUT, VO: –0.3 V to 7 V; (3)Input voltage range at DIN, VI: –0.3 V to 7 V; (4)Operating free-air temperature range: C suffix: 0℃ to 70℃, I suffix: –40℃ to 85℃; (5)Storage temperature range, Tstg: – 65℃ to 150℃; (6)Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds: 260℃.

Features

TCM320AC36C features: (1)Single 5-V Operation; (2)Low Power Consumption: Operating Mode: 40 mW Typ, Standby Mode: 5 mW Typ, Power-Down Mode: 3 mW Typ; (3)Combined A/D, D/A, and Filters; (4)Extended Variable-Frequency Operation: Sample Rates up to 16 kHz, Pass-Band up to 7.2 kHz; (5)Electret Microphone Bias Reference Voltage Available; (6)Drive a Piezo Speaker Directly; (7)Compatible With All Digital Signal Processors (DSPs); (8)Programmable Volume Control in Linear Mode; (9)300 Hz – 3.6 kHz Passband with Specified Master Clock; (10)Designed for Standard 2.048-MHz Master Clock for U.S. Analog, U.S. Digital, CT2, DECT, GSM, and PCS Standards for Hand-Held Battery-Powered Telephones.

Diagrams

TCM320AC36C diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
TCM320AC36CDWR
TCM320AC36CDWR
Other

Data Sheet
Negotiable
TCM320AC36CN
TCM320AC36CN
Texas Instruments
IC VOICE BAND AUDIO PROCESSOR 20
Data Sheet
Negotiable
