Product Summary
The TORX147PL is a fiber optic receiving module for digital audio interface.
Parametrics
TORX147PL absolute maximum ratings: (1)Storage Temperature Tstg: -40 to 70 ℃; (2)Operating Temperature Topr: -20 to 70 ℃; (3)Supply Voltage VCC: -0.5 to 4.5 V; (4)High Level Output Current IOH: -2 mA; (5)Low Level Output Current IOL: 2 mA; (6)Soldering Temperature Tsol: 260 ℃.
Features
TORX147PL features: (1)For JEITA Standard CP-1212(Digital Audio Optical Interface for Consumer Equipment); (2)Mini-package with Shutter System; (3)RoHS Compatible.

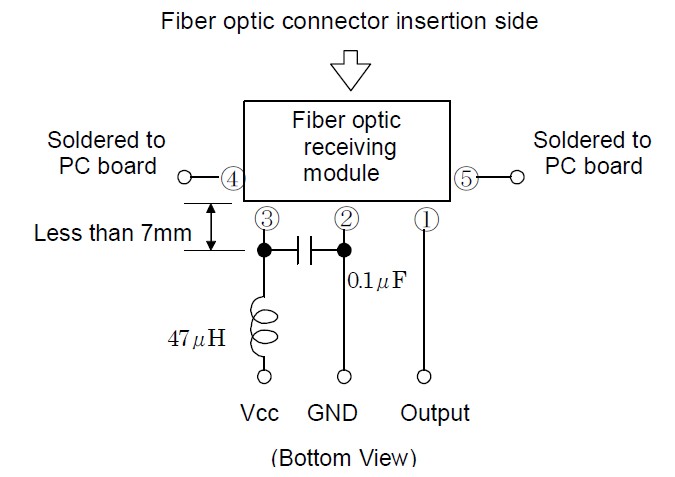

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 TORX147PL |
Other |
|
Data Sheet |
Negotiable |
|
||||
 |
TORX147PL(25M,F,T) |
Toshiba |
Fiber Optic Transmitters, Receivers, Transceivers TOSLINK RECEIVER Brd mount 25Mbps |
Data Sheet |
Negotiable |
|
||||
|
TORX147PL(F,T) |
Toshiba |
Fiber Optic Transmitters, Receivers, Transceivers TOSLINK RECEIVER 15Mb/sec Vcc=3.3V |
Data Sheet |
Negotiable |
|
||||
