Product Summary
The XC3S1400A-4FTG256C is a Field-Programmable Gate Array. It builds on the success of the earlier Spartan-3E and Spartan-3 FPGA families. New features improve system performance and reduce the cost of configuration. The XC3S1400A-4FTG256C enhancements, combined with proven 90 nm process technology, deliver more functionality and bandwidth per dollar than ever before, setting the new standard in the programmable logic industry. The XC3S1400A-4FTG256C is ideally suited to a wide range of consumer electronics applications, including broadband access, home networking, display/projection, and digital television equipment.
Parametrics
XC3S1400A-4FTG256C absolute maximum ratings: (1)VCCINT Internal supply voltage: –0.5 to 1.32 V; (2)VCCAUX Auxiliary supply voltage: –0.5 to 3.75 V; (3)VCCO Output driver supply voltage: –0.5 to 3.75 V; (4)VREF Input reference voltage: –0.5 VCCO + 0.5 V; (5)VIN Voltage applied to all User I/O pins and Dual-Purpose pins:–0.95 to 4.6 V, Voltage applied to all Dedicated pins: –0.5 to 4.6 V; (6)TJ Junction temperature: 125 ℃; (7)TSTG Storage temperature: –65 to 150 ℃.
Features
XC3S1400A-4FTG256C features: (1)Very low cost, high-performance logic solution for high-volume, cost-conscious applications; (2)Dual-range VCCAUX supply simplifies 3.3V-only design; (3)Suspend, Hibernate modes reduce system power; (4)Multi-voltage, multi-standard SelectIO interface pins; (5)Abundant, flexible logic resources; (6)Hierarchical SelectRAM memory architecture; (7)Up to eight Digital Clock Managers (DCMs); (8)Eight low-skew global clock networks, eight additional clocks per half device, plus abundant low-skew routing; (9)Configuration interface to industry-standard PROMs.

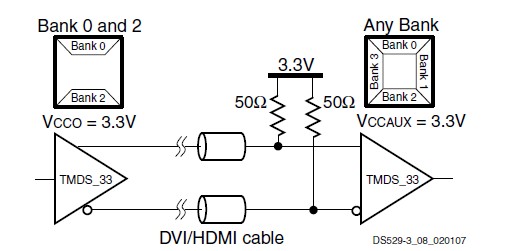

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 XC3S1400A-4FTG256C |
|
IC FPGA SPARTAN3A 1400K 256FTBGA |
Data Sheet |
|
|
||||||||||
