Product Summary

The XC4028XL-3HQ208C is a high-performance, high-capacity Field Programmable Gate Array. It provides the benefits of custom CMOS VLSI, while avoiding the initial cost, long development cycle, and inherent risk of a conventional masked gate array.

Parametrics

XC4028XL-3HQ208C specifications: (1)Power-On Reset: M0 = High:10ms to 40ms,M0 = Low:40ms to 130ms; (2)CCLK (output) Delay:40μs to 250μs; (3)CCLK (output) Period, slow:540ns to 1600ns; (4)CCLK (output) Period, fast:67ns to 200ns.

Features

XC4028XL-3HQ208C features: (1)System Performance beyond 80 MHz; (2)Flexible Array Architecture; (3)Low Power Segmented Routing Architecture; (4)Interfaces to popular design environments; (5)Fully automatic mapping, placement and routing; (6)Interactive design editor for design optimization; (7)Program verification; (8)Internal node observability; (9)Abundant flip-flops; (10)Flexible function generators; (11)Dedicated high-speed carry logic; (12)Wide edge decoders on each edge; (13)Hierarchy of interconnect lines; (14)Internal 3-state bus capability.

Diagrams

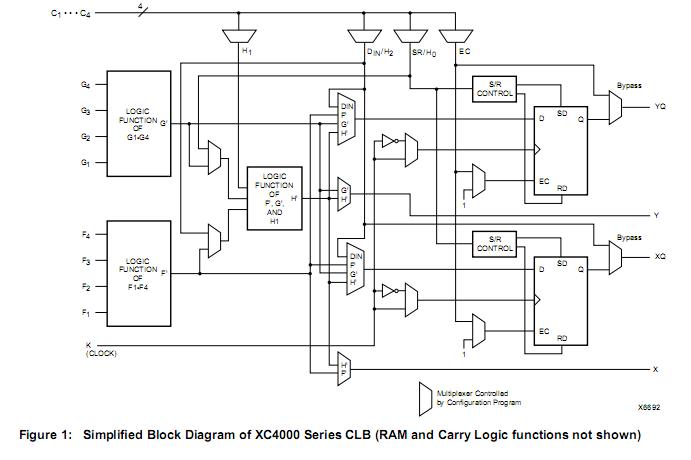

XC4028XL-3HQ208C diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
XC4028XL-3HQ208C
XC4028XL-3HQ208C


IC FPGA C-TEMP 3.3V 3SPD 208HQFP

Data Sheet

Negotiable
