Product Summary
The SM15T18CA is a Transil diode. It provides high overvoltage protection by clamping action. Its instantaneous response to transient overvoltages makes the SM15T18CA particularly suited to protect voltage sensitive devices such as MOS Technology and low voltage supplied IC’s.
Parametrics
SM15T18CA absolute maximum ratings: (1)PPP Peak pulse power dissipation: 1500 W; (2)Tstg Storage temperature range: -65 to + 150 ℃; (3)Tj Operating junction temperature range: -55 to + 150 ℃; (4)TL Maximum lead temperature for soldering during 10 s: 260 ℃.
Features
SM15T18CA features: (1)Peak pulse power: 1500 W (10/1000 μs), 10 kW (8/20 μs); (2)Breakdown voltage range: from 6.8 V to 220 V; (3)Unidirectional and bidirectional types; (4)Low leakage current: 0.2 μA at 25 ℃, 1 μA at 85 ℃; (5)Operating Tj max: 150 ℃; (6)High power capability at Tjmax: 1250 W (10/1000 μs); (7)JEDEC registered package outline.

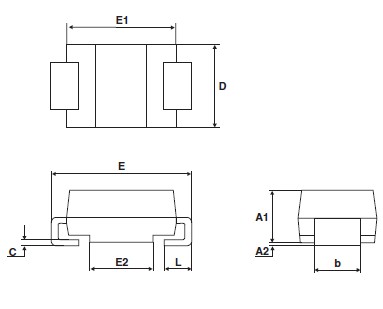

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 SM15T18CA |
STMicroelectronics |
TVS Diodes - Transient Voltage Suppressors 1500W 18V Bidirect |
Data Sheet |
|
|
||||||||||||
|
SM15T18CA/57T |
Vishay Semiconductors |
TVS Diodes - Transient Voltage Suppressors 1500W 18V 5% Bi |
Data Sheet |
|
|
||||||||||||
|
SM15T18CA/7T |
Vishay Semiconductors |
TVS Diodes - Transient Voltage Suppressors 1500W 18V 5% Bi |
Data Sheet |
|
|
||||||||||||
|
SM15T18CA-E3/51T |
Vishay Semiconductors |
TVS Diodes - Transient Voltage Suppressors 1500W 18V 5% Bi |
Data Sheet |
Negotiable |
|
||||||||||||
|
SM15T18CA/9AT |
Vishay Semiconductors |
TVS Diodes - Transient Voltage Suppressors 1500W 18V 5% Bi |
Data Sheet |
Negotiable |
|
||||||||||||
|
SM15T18CA/59T |
Vishay Semiconductors |
TVS Diodes - Transient Voltage Suppressors 1500W 18V 5% Bi |
Data Sheet |
Negotiable |
|
||||||||||||
|
SM15T18CA-E3/57T |
Vishay Semiconductors |
TVS Diodes - Transient Voltage Suppressors 1500W 18V 5% Bi |
Data Sheet |
|
|
||||||||||||
|
SM15T18CAY |
STMicroelectronics |
TVS Diodes - Transient Voltage Suppressors 1500 W 10kW Transil 5.8V tp 70V BI |
Data Sheet |
|
|
||||||||||||
